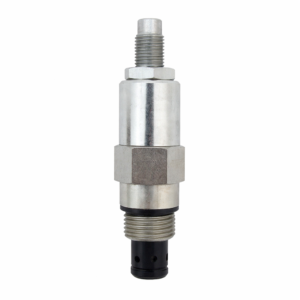

The LBRV2-10-24 is an L Series direct acting, bi-directional cross port relief valve cartridge for a C10-2 cavity. It relieves excess pressure from either port to the other. The setting adjusts from 200 to 2,400 psi, and the valve handles 16 gpm with a 3,480 psi operating pressure rating. The body is anodized aluminum alloy, rated for -30°F to +250°F.
A standard relief valve protects one line and dumps to tank. A cross port relief sits between two lines, such as the two ports of a hydraulic motor or the two ends of a cylinder. If pressure in either line exceeds the setting, the valve opens and passes flow across to the other line. That limits shock pressure in both directions, for example when a directional valve centers and a turning motor tries to keep rotating.
Bi-directional means one cartridge handles both directions, so you do not need two separate reliefs. Direct acting means the spring works straight on the valve element, with no pilot stage.
The C10-2 is a two-port cavity, one port for each line. No ported body is listed for this part number, so it fits a manifold or line body machined for that cavity. Confirm the setting range, flow and cavity before ordering.
