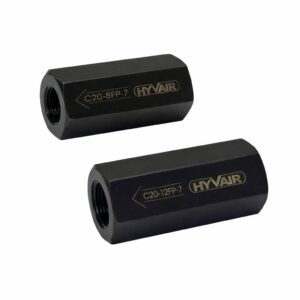

Images used may not represent the actual product.
$292.04
The Hyvair C20-32FS-7 is a steel inline check valve from the C20 series with 2 in (SAE-32) female SAE straight thread O-ring boss ports. It allows flow in one direction and blocks reverse flow. Maximum operating pressure is 3000 psi.
Cracking pressure is 7 psi (0.5 bar). The check opens with little inlet pressure, so forward flow passes with low pressure drop through the 2 in line, and the valve closes when flow reverses.
The O-ring boss ports seal with an O-ring compressed against the port face, while the straight threads hold the fitting. No thread sealant is needed. Fittings can come out and go back in during service without the wear that repeated tightening puts on tapered threads. A flow direction arrow on the body marks the free flow direction.
Use petroleum based fluid, ISO VG32 to 68. Maximum fluid temperature is 180 °F, and maximum cold start viscosity is 250 SUS. Recommended filtration is 10 micron. Clean fluid keeps the seat free of debris so the C20-32FS-7 can seal reliably in the blocked direction.
What port size does it use?
2 in (SAE-32) (Female SAE straight thread O-ring boss).
What pressure and flow is it rated for?
It is rated to 3000 psi.
What fluid conditions keep it running well?
Rated operating conditions: filtration 10 micron; fluid: Petroleum based, ISO VG32-68.
What is it made of?
The body is steel.
Related categories: Valves · Check Valves
Brand: Hyvair
