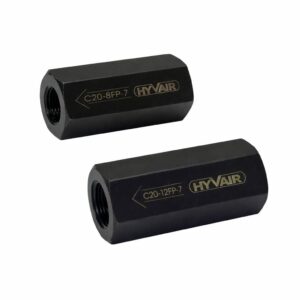

Images used may not represent the actual product.
$175.22
The Hyvair C20-24FP-70 is a C20 series inline check valve with a steel body and 1-1/2 in female NPT ports. It passes flow in one direction and blocks reverse flow through the line. Maximum operating pressure is 3000 psi.
Cracking pressure is 70 psi (4.8 bar) at 1 gpm. The check stays seated until inlet pressure overcomes that spring setting. Use a 70 psi check when the valve should remain closed under low upstream pressure and open only after pressure builds to a defined point.
Ports are 1-1/2 in female NPT, sized for male tapered pipe thread fittings. A flow direction arrow is marked on the body, so the free flow side is easy to identify during installation and later service.
The valve is suited to petroleum based fluid in the ISO VG32 to 68 range. Maximum fluid temperature is 180 °F, and maximum cold start viscosity is 250 SUS. Hold system filtration at 10 micron. Clean fluid keeps debris off the seat so the C20-24FP-70 closes fully when flow reverses.
What port size does it use?
1-1/2 in (Female NPT).
What pressure and flow is it rated for?
It is rated to 3000 psi.
What fluid conditions keep it running well?
Rated operating conditions: filtration 10 micron; fluid: Petroleum based, ISO VG32-68.
What is it made of?
The body is steel.
Related categories: Valves · Check Valves
Brand: Hyvair
