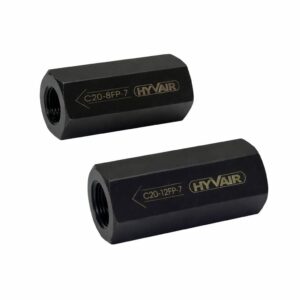

Images used may not represent the actual product.
$292.04
The Hyvair C20-32FP-70 is a C20 series inline check valve with a steel body and 2 in female NPT ports. Flow passes freely in one direction and is blocked in the reverse direction. The valve is rated to a maximum operating pressure of 3000 psi.
Cracking pressure is 70 psi (4.8 bar) at 1 gpm. The check holds closed until inlet pressure reaches that value, then opens for forward flow. A 70 psi setting keeps the valve shut against low upstream pressure, so flow only passes once pressure has built to the set point.
The 2 in female NPT ports take male tapered pipe thread fittings. A flow direction arrow on the body shows the free flow path and makes the correct orientation easy to verify at installation.
Run the C20-32FP-70 on petroleum based fluid in the ISO VG32 to 68 range. Maximum fluid temperature is 180 °F. Cold start viscosity should stay at or below 250 SUS. Recommended filtration is 10 micron, which keeps particles off the seat so the check seals fully when flow tries to reverse.
What port size does it use?
2 in (Female NPT).
What pressure and flow is it rated for?
It is rated to 3000 psi.
What fluid conditions keep it running well?
Rated operating conditions: filtration 10 micron; fluid: Petroleum based, ISO VG32-68.
What is it made of?
The body is steel.
Related categories: Valves · Check Valves
Brand: Hyvair
