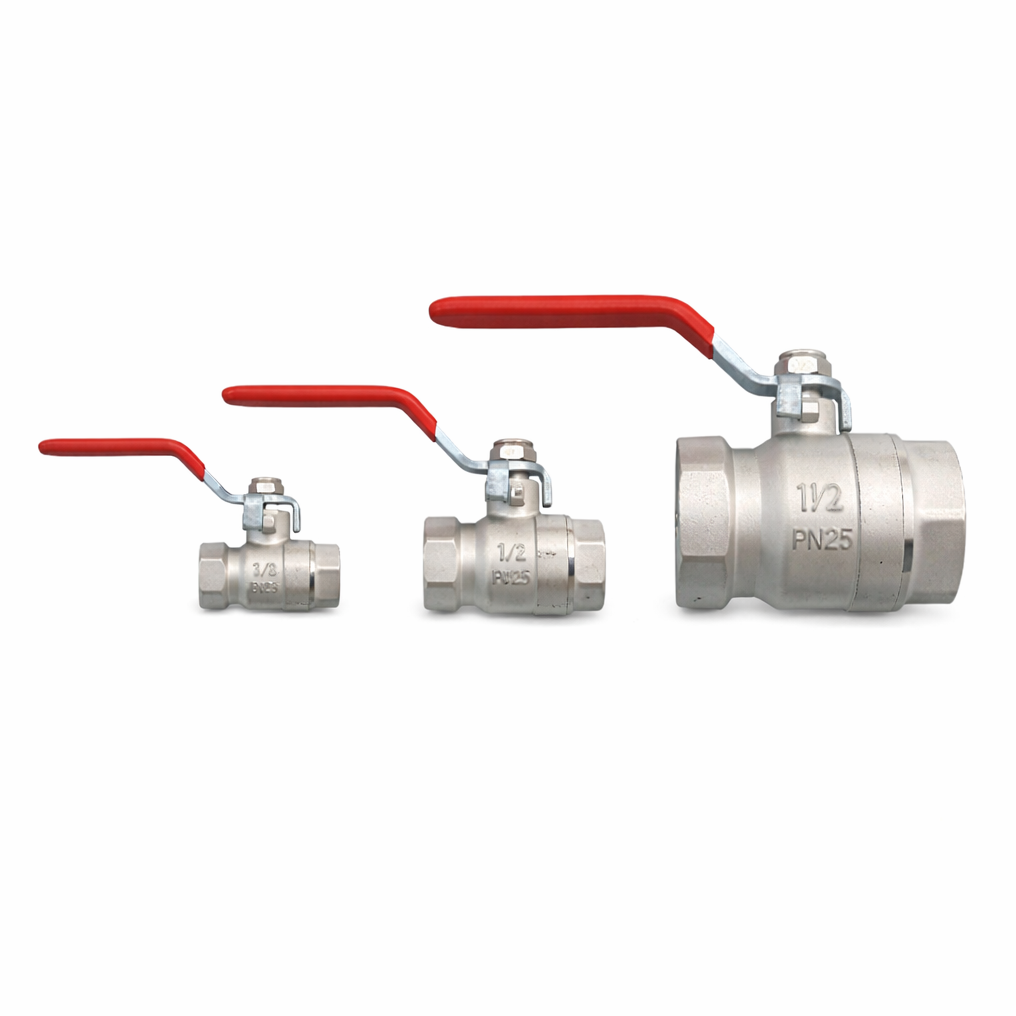

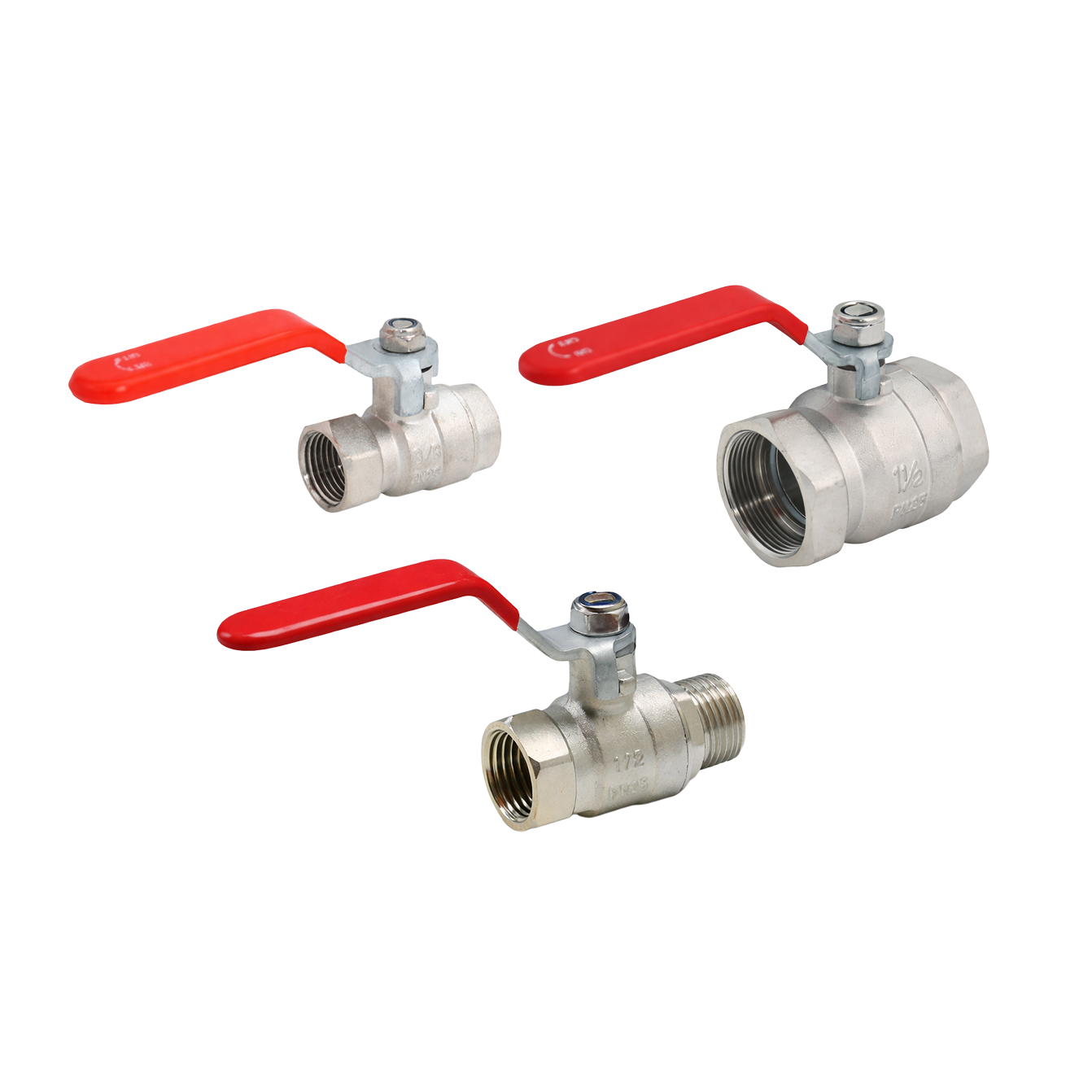

Brass Ball Valves 1/4″ – BBV-4FP

Weight	.31 lbs
Dimensions	3.35 × 1.55 × 1.58 in

$9.19

Brass Ball Valves 1/4" BBV-4FP is a compact quarter-turn valve engineered for a 1/4" female NPT (FP) connection, featuring a brass body, bonnet and ball, PTFE seats, NBR O‑ring seals and a steel handle and nut; pressure-rated to 600 psi at 100°F (reduced at elevated temperatures) and built to B Series BBV dimensional/performance specifications. This low‑maintenance valve delivers fast, positive shutoff and line isolation with broad media compatibility—water, oil, air and non‑aggressive gases—making it ideal for plumbing, HVAC, instrumentation and general industrial fluid systems. Commonly used as service valves, line isolation, pilot and sample line valves, the BBV-4FP offers durable, compact quarter‑turn control where reliable shutoff and compact packaging are required.

Note that images used may not represent the actual product.

Spec Sheets

Description

Compact quarter-turn valve engineered for a 1/4” female NPT connection, featuring brass body, bonnet and ball, PTFE seats, NBR O‑ring seals, and a steel handle and nut. Pressure-rated to 600 psi at 100°F for 1/4”–2” sizes (reduced at elevated temperatures), with female pipe (FP) porting and dimensional/performance specifications conforming to the B Series BBV lineup.

Brass Ball Valves 1/4″ BBV-4FP deliver reliable, low‑maintenance shutoff and fast isolation for plumbing, HVAC, instrumentation and general industrial fluid systems; the brass construction combined with PTFE seats offers broad compatibility with water, oil, air and non‑aggressive gases, making this model well suited for service valves, line isolation, pilot/sample lines and other applications requiring durable, compact quarter‑turn control.

Related categories: Valves · Ball Valves · Brass Ball Valves

Additional information

Weight	.31 lbs
Dimensions	3.35 × 1.55 × 1.58 in
