$214.30

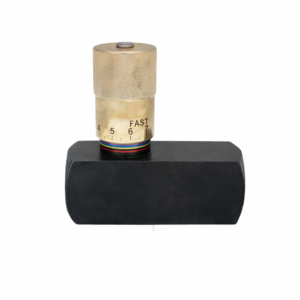

The Hyvair FC20-12FP is a 3/4 in female NPT flow control valve from the FC20 Series. It regulates speed and flow for cylinders and motors, with adjustable metering in one direction and free flow in the other.
Metering performance is listed as a controlled Cv of 1.71 and a free-flow Cv of 5.41. An integrated check valve with a 2 psi cracking pressure opens for one-way free flow, so return oil bypasses the metering restriction.
The steel body is rated to a maximum of 5000 psi and 400°F (200°C). The valve is meant for petroleum-based fluids in the ISO VG32 to 68 range. Dimensional details and performance curves are available from the manufacturer for system matching and pressure-drop calculations.
Controlled metering helps reduce hydraulic shock and keeps cycle times consistent. The inline female NPT connection makes installation and retrofits straightforward on mobile and industrial equipment, including material-handling systems and hydraulic power units. At 3/4 in, it suits mid-size lines that need speed control on one stroke and an unrestricted return on the other.
