$111.94

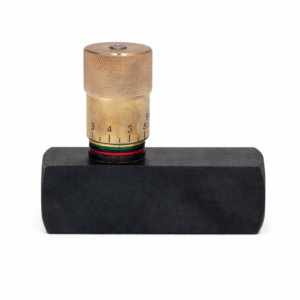

The Hyvair FC20-8FP is a 1/2 in female NPT flow control valve in the FC20 Series. It installs inline and meters flow for speed and cylinder control in high-pressure hydraulic systems.
The valve works in two directions. Oil moving in the controlled direction passes through a metering restriction, which limits flow and slows the actuator. Oil moving the other way opens the integral check valve, which cracks at 2 psi, and returns with little restriction. That lets you slow a cylinder on one stroke without slowing the return.
The body is precision-machined steel, rated to a maximum of 5000 psi and 400°F. A color band on the body identifies the valve, so the right part goes back in during service.
The 1/2 in female pipe ports accept standard male NPT fittings, and the compact inline shape suits mobile and industrial hydraulic lines, manifolds and retrofit work. Consistent metering helps keep cycle times repeatable from one stroke to the next. Confirm flow direction during installation so the metered side faces the flow you want to control.
