D08 Modular Pressure Reducing Valve – 35 GPM – 2000 PSI – D08-PR1-P-2K

The Hyvair Modular Pressure Reducing Valve D08-PR1-P-2K is for hydraulic system builders, OEMs and maintenance technicians replacing or specifying manifold-mounted valves.

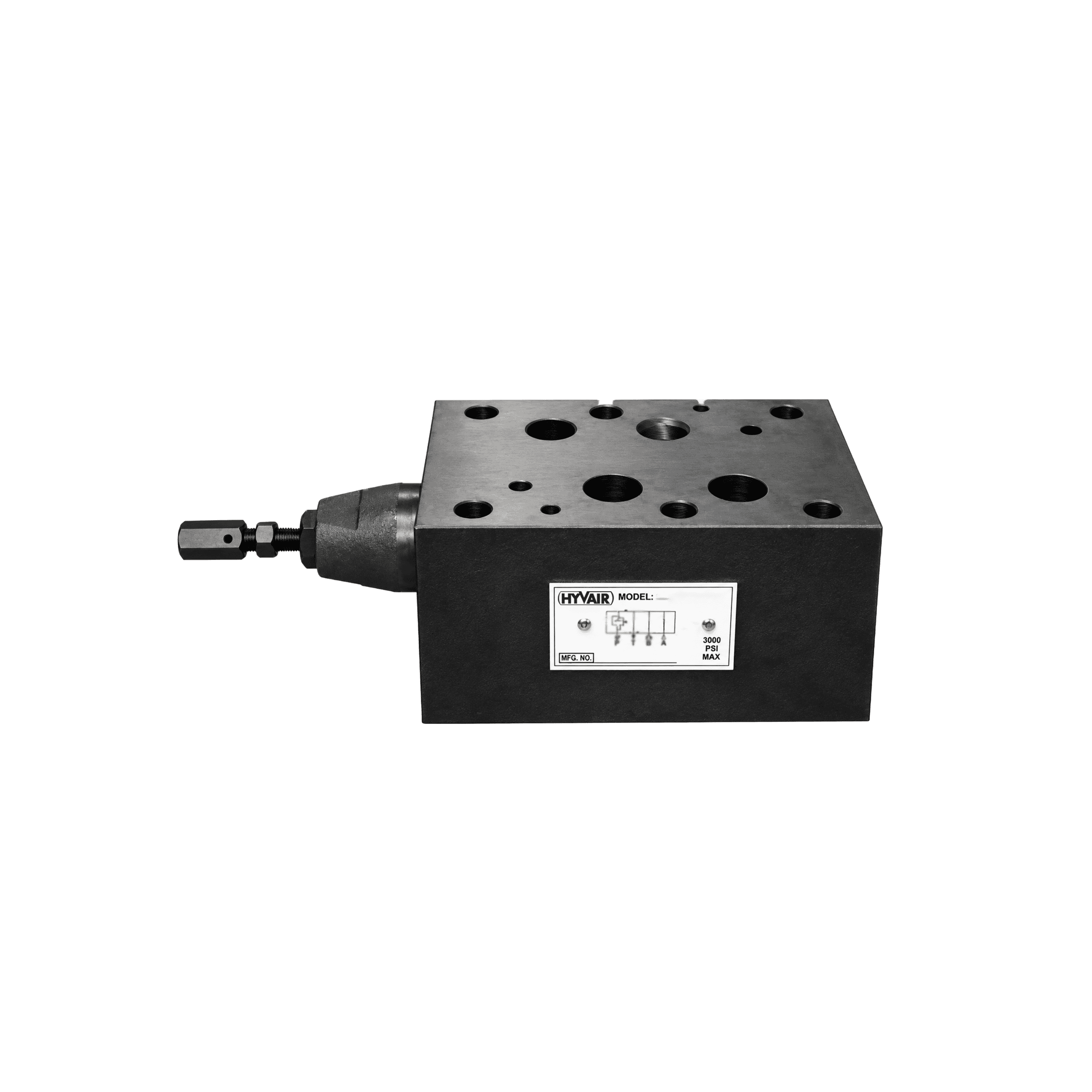

This Hyvair D08 modular pressure reducing valve, part number D08-PR1-P-2K, lowers pressure in the P port. A 1/4 in female NPT gauge port lets you monitor the reduced pressure.

The steel body mounts on the NFPA D08 / ISO 4401-08 pattern and is rated to 3000 psi with 35 gpm nominal flow. A uniform 3.35 in body thickness keeps stacks clean and reduces the number of bolt kits needed.

Recommended filtration is 25 micron or less, ISO 18/15. Fluid temperature range is 40 to 160 °F. Fluid viscosity range is 80 to 300 SUS.

Common questions

What mounting pattern does it fit?
It mounts on the NFPA T3.5.1.MR1-D08 / ISO 4401-08 interface.

What pressure and flow is it rated for?
It is rated to 3000 psi, nominal flow 35 gpm / 130 L/min.

What fluid conditions keep it running well?
Rated operating conditions: filtration 25 micron or less, ISO 18/15; viscosity 80 to 300 SUS; fluid temperature 40 to 160 °F.

What is it made of?
The body is steel.

Related categories: Valves · Modular Valves · Pressure Reducing Valves

Brand: Hyvair
