$630.83
The Hyvair Modular Needle Valve with Check D08-NC1-P is for hydraulic system builders, OEMs and maintenance technicians replacing or specifying manifold-mounted valves.

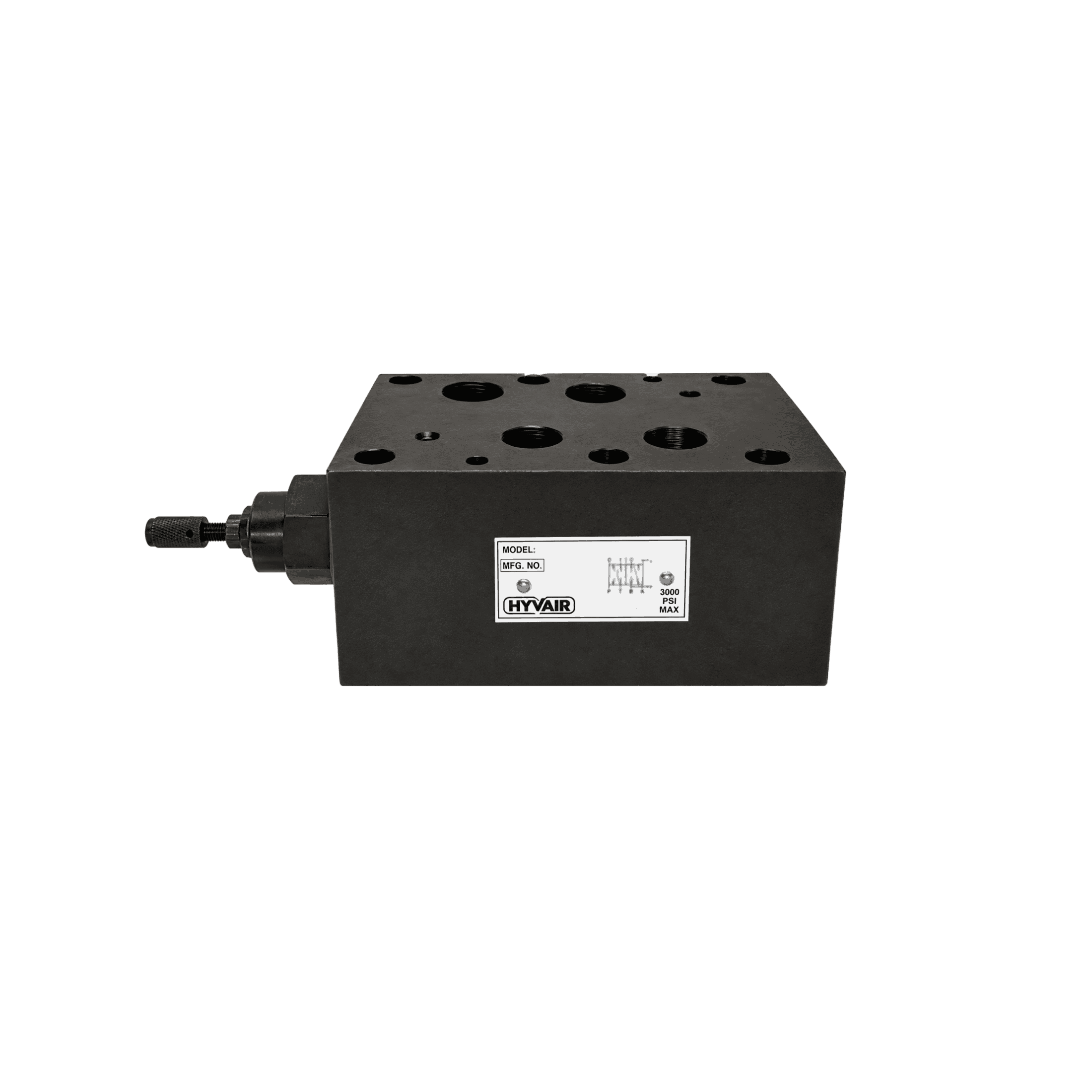

This Hyvair D08 modular needle valve with check, part number D08-NC1-P, throttles flow in the P port, with a check for free flow in the reverse direction.
The steel body mounts on the NFPA D08 / ISO 4401-08 pattern and is rated to 3000 psi with 50 gpm nominal flow. A uniform 3.35 in body thickness keeps stacks clean and reduces the number of bolt kits needed.
Recommended filtration is 25 micron or less, ISO 18/15. Fluid temperature range is 40 to 160 °F. Fluid viscosity range is 80 to 300 SUS.
What mounting pattern does it fit?
It mounts on the NFPA T3.5.1.MR1-D08 / ISO 4401-08 interface.
What pressure and flow is it rated for?
It is rated to 3000 psi, nominal flow 50 gpm / 190 L/min.
What fluid conditions keep it running well?
Rated operating conditions: filtration 25 micron or less, ISO 18/15; viscosity 80 to 300 SUS; fluid temperature 40 to 160 °F.
What is it made of?
The body is steel.
Related categories: Valves · Modular Valves · Needle Valves
Brand: Hyvair
