$210.28
The Hyvair Modular Needle Valve with Check D05-NC1-P-7 is for hydraulic system builders, OEMs and maintenance technicians replacing or specifying manifold-mounted valves.

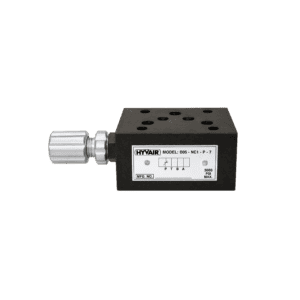

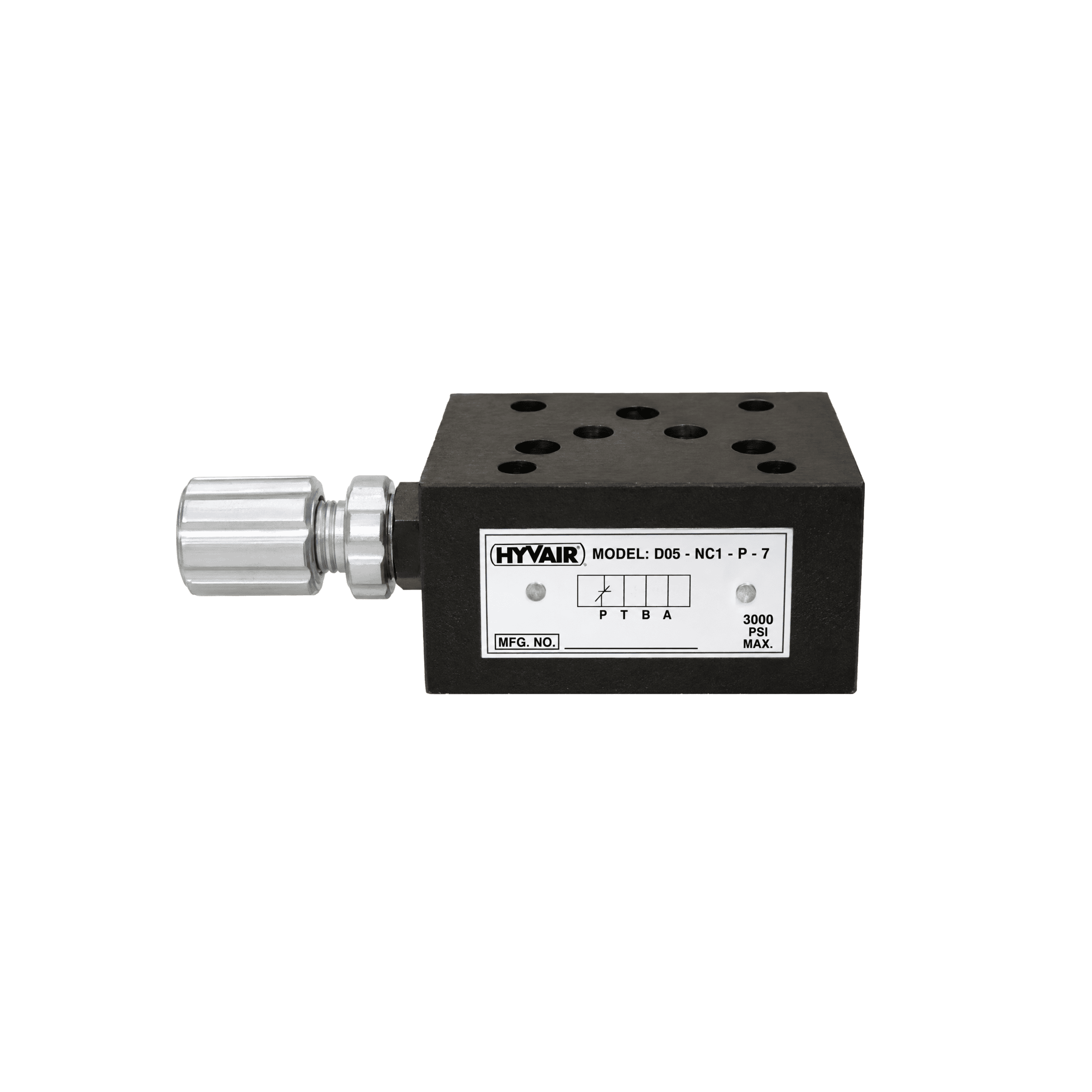

This Hyvair D05 modular needle valve with check, part number D05-NC1-P-7, throttles flow in the P port, with a check for free flow in the reverse direction. The check cracks at 7 psi.
The steel body mounts on the NFPA D05 / ISO 4401-05 pattern and is rated to 3000 psi with 12 gpm nominal flow. A uniform 2.17 in body thickness keeps stacks clean and reduces the number of bolt kits needed. The hand knob with locknut adjusts without tools.
Recommended filtration is 25 micron or less, ISO 18/15. Fluid temperature range is 40 to 160 °F. Fluid viscosity range is 80 to 300 SUS.
What mounting pattern does it fit?
It mounts on the NFPA T3.5.1.MR1-D05 / ISO 4401-05 interface.
What pressure and flow is it rated for?
It is rated to 3000 psi, nominal flow 12 gpm / 45 L/min.
What fluid conditions keep it running well?
Rated operating conditions: filtration 25 micron or less, ISO 18/15; viscosity 80 to 300 SUS; fluid temperature 40 to 160 °F.
What is it made of?
The body is steel.
Related categories: Valves · Modular Valves · Needle Valves
Brand: Hyvair
