Images used may not represent the actual product.
$651.68

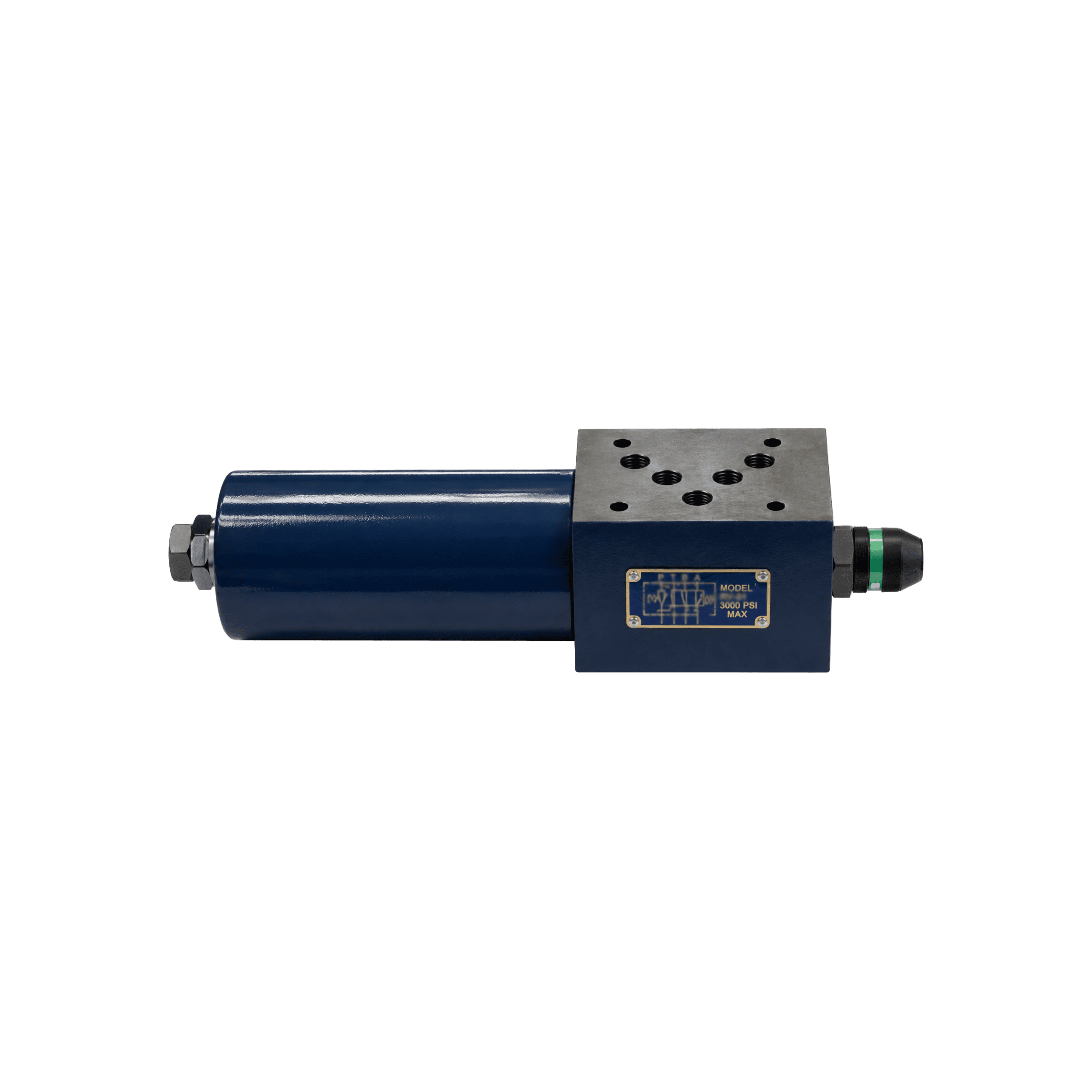

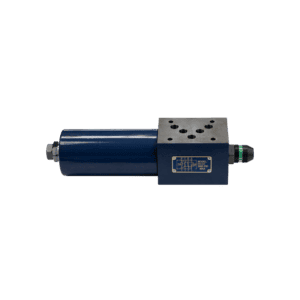

The Hyvair D05-PF1-P is a D05 standard modular pressure filter assembly that filters the P line of a valve stack. It sandwiches between the subplate and the directional valve. Pump flow passes through the filter element on its way to the valve, while the A, B and T ports pass straight through the body unfiltered.
The assembly ships with a 10 micron element, part number D05-PFE-1, and a visual clogging indicator, part number PF1-VI. A pressure filter catches contamination on the pressure side, before it reaches the spool of the directional valve. The indicator shows when the element is loading with dirt, so you can plan an element change from what you see instead of waiting for a problem.
Because the filter adds height to the stack, it mounts with longer bolts. The specified set is socket head cap screws, 1/4-20 x 4.25 in, with high collar lock washers, sized for a stack of the filter and one solenoid valve. Check bolt length against total stack height if your stack is built differently.
When the element needs replacing, order D05-PFE-1 to match the original 10 micron rating.
Related categories: Valves · Modular Valves · Pressure Filter
Brand: Hyvair
