Images used may not represent the actual product.
$641.34
The Hyvair Air Pilot Operated Directional Valve D05A-1A-35 is for hydraulic system builders, OEMs and maintenance technicians replacing or specifying manifold-mounted valves.

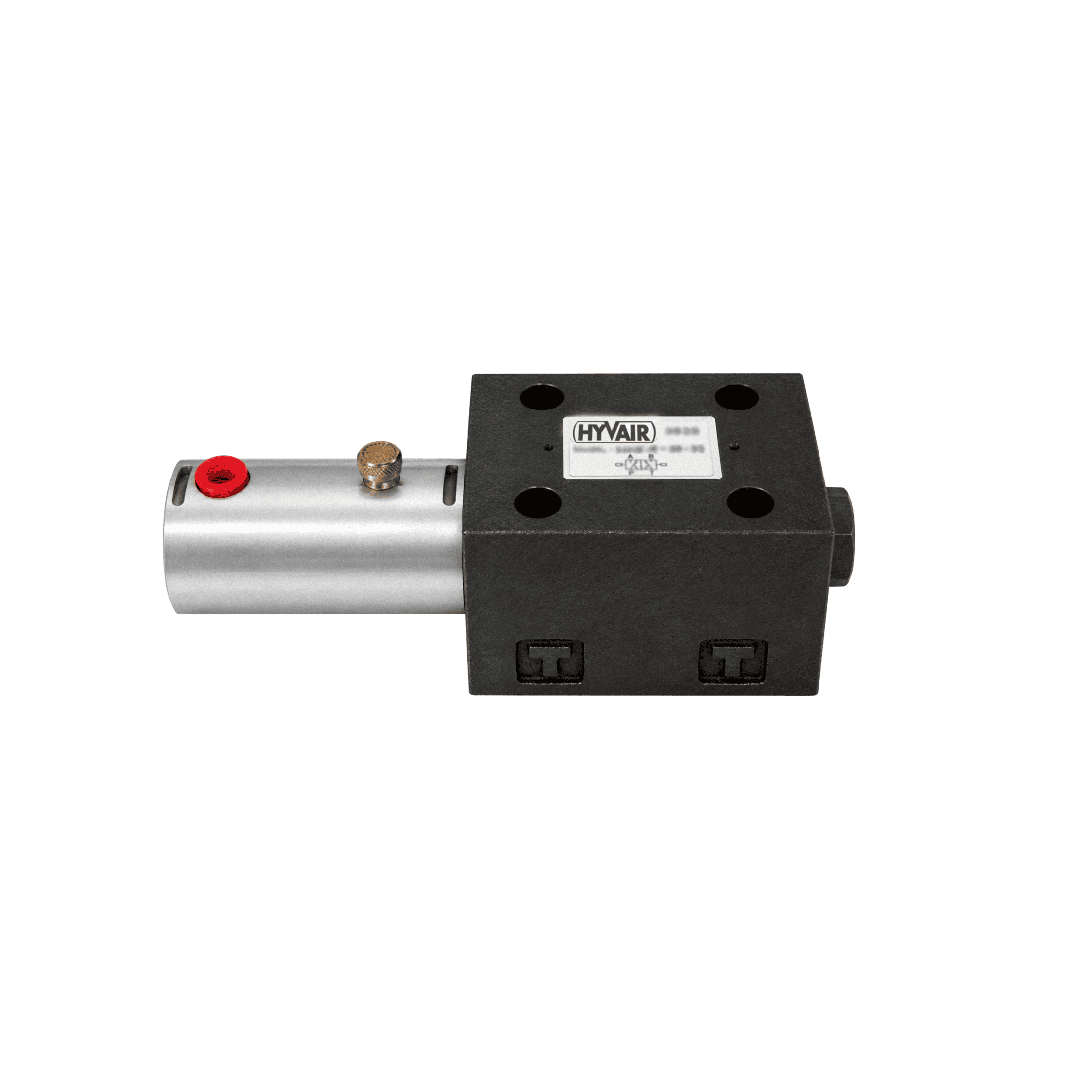

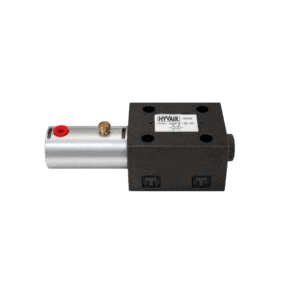

This Hyvair D05 air piloted directional valve, part number D05A-1A-35, shifts its spool with air pressure from 20 to 250 psi and is rated to 5000 psi and 32 gpm. As a single pilot operator, 2 position spring offset valve, it provides a P to A, B to T flow path, closed in transition.
Air operators shift at low pressure with quick response, and a manual override and breather filter vents come standard. Pilot ports are 1/8 in NPT female. It mounts on the NFPA D05 / ISO 4401-05 pattern and cycles up to 200 times per minute. The tank port is rated 300 psi including surges.
Recommended filtration is 25 micron or finer, ISO 18/15. Fluid temperature range is 40 to 160 °F. Fluid viscosity range is 80 to 300 SUS.
What mounting pattern does it fit?
It mounts on the NFPA T3.5.1.MR1-D05 / ISO 4401-05 interface.
What pressure and flow is it rated for?
It is rated to 5000 psi, max flow 32 gpm.
What fluid conditions keep it running well?
Rated operating conditions: filtration 25 micron or finer, ISO 18/15; viscosity 80 to 300 SUS; fluid temperature 40 to 160 °F.
Related categories: Valves · Pilot Operated Valves · D05 Series
Brand: Hyvair
