$7,190.10

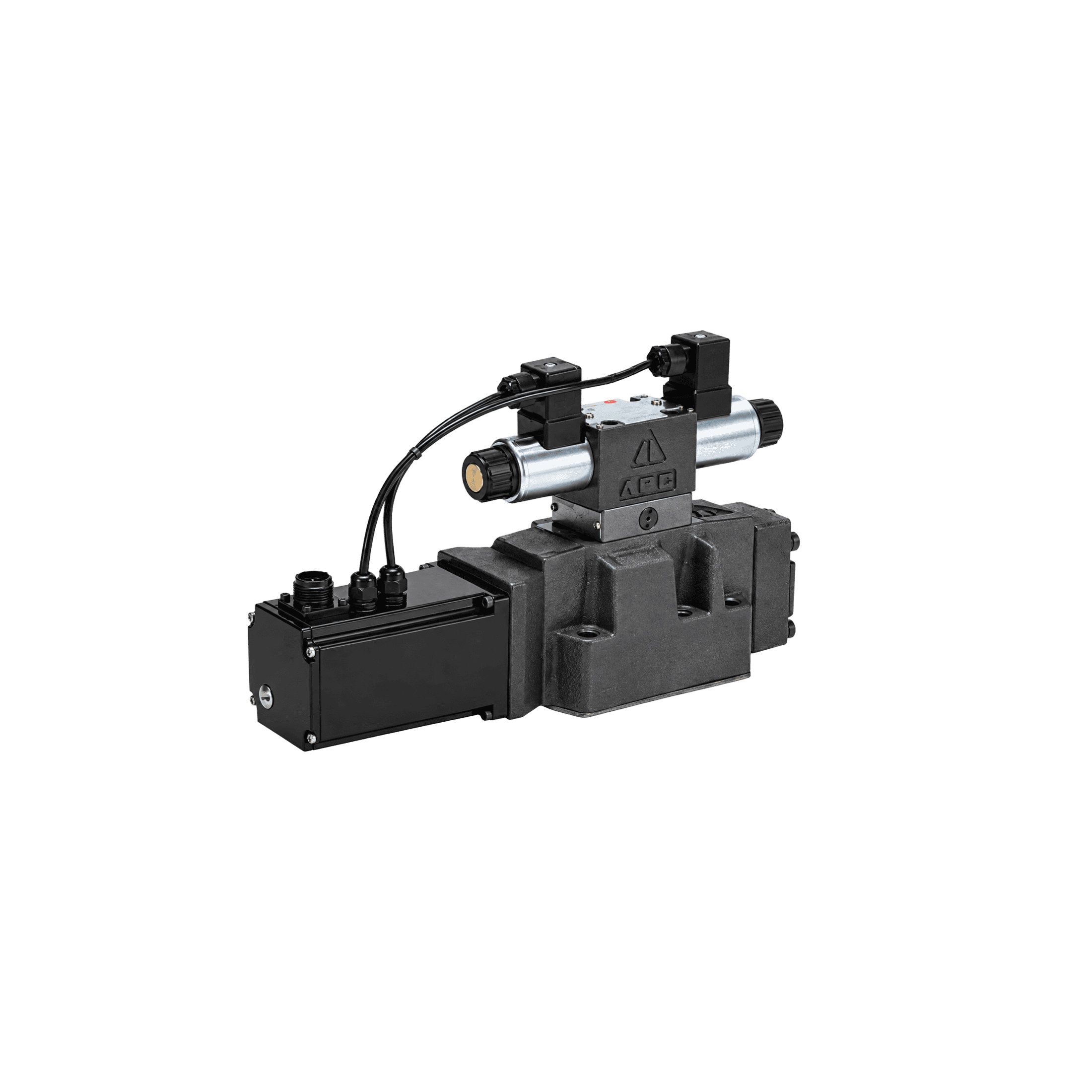

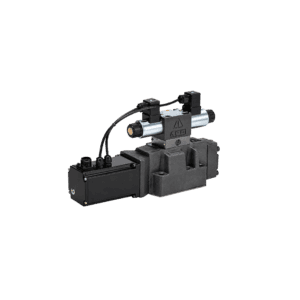

The Hyvair Pilot Operated 2-Stage Proportional Directional Valve DPGKE-16-3C40-200L-6E-D24-ET-DF31-A1-D-N is for machine builders and controls engineers who need electronically variable hydraulic control.
The Hyvair DPGKE D07 pilot operated proportional directional valve, part number DPGKE-16-3C40-200L-6E-D24-ET-DF31-A1-D-N, controls the size and direction of flow on high flow circuits, with 52.8 gpm nominal flow and a 5076 psi pressure rating. Its 3C40 spool is spring centered, and P is blocked and A and B connect to T through a small orifice in neutral.
An inductive position transducer closes the loop on the main spool, so spool position holds steady against flow forces. Integrated electronics accept a ±10 V command, a fixed pressure reducing valve feeds the pilot stage, and the valve carries IP65 protection.
It mounts on the NFPA D07 interface. The tank port is rated to 145 psi static. The coil operates within 18 to 35 VDC. Hysteresis is 1% max. Seals are NBR. Fluid temperature range is -4 to 176 °F.
What mounting pattern does it fit?
It mounts on the NFPA D07 interface.
What pressure and flow is it rated for?
It is rated to 5076 psi, nominal flow 52.8 gpm / 200 l/min, max flow 121.5 gpm.
What command signal does it take?
±10 V, on a 24 VDC supply.
What fluid conditions keep it running well?
Rated operating conditions: fluid temperature -4 to 176 °F.
What is it made of?
Seals are NBR.
Related categories: Valves
Brand: Hyvair
