$201.52
The Hyvair Modular Single Pilot Operated Check Valve D05-SPC1-B-70 is for hydraulic system builders, OEMs and maintenance technicians replacing or specifying manifold-mounted valves.

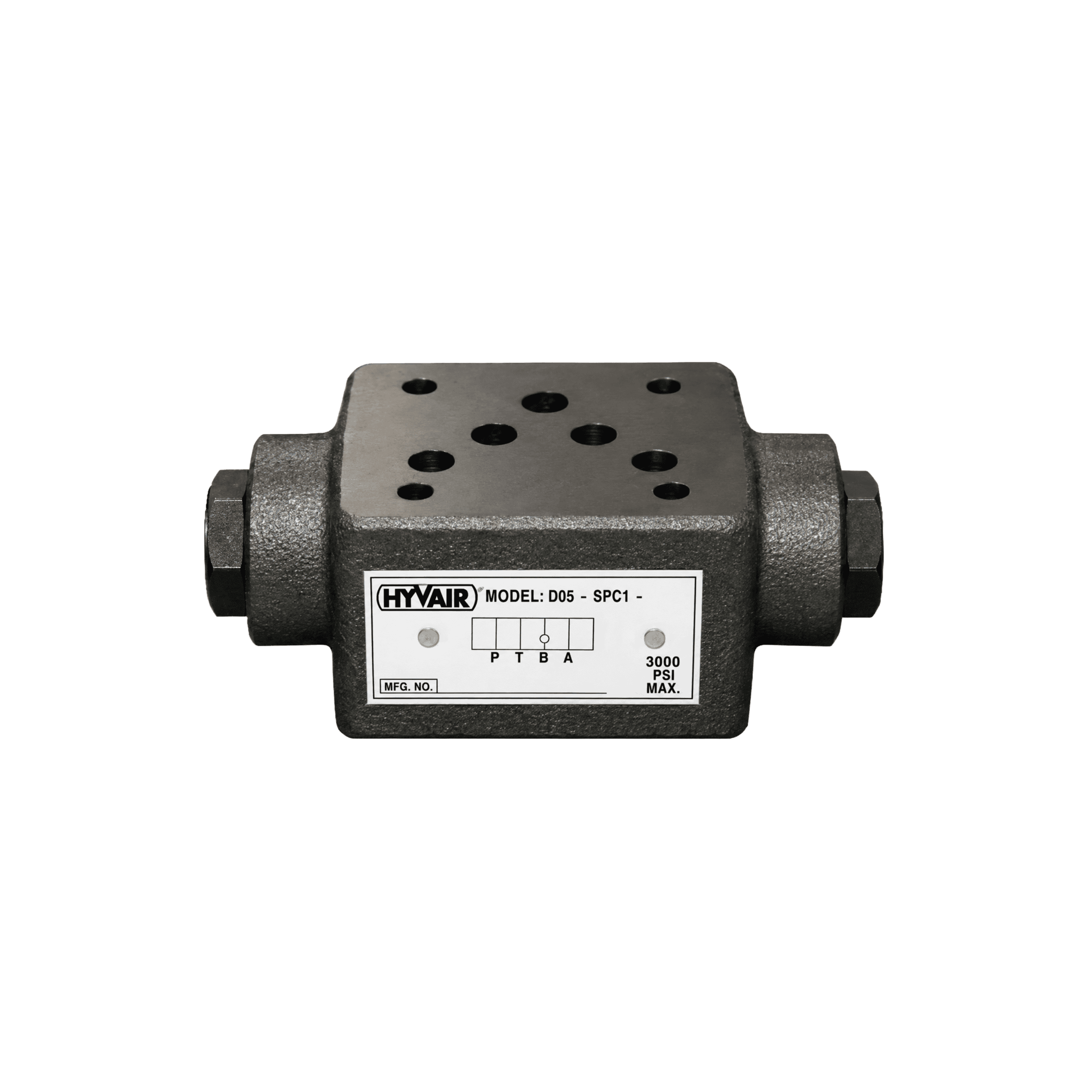

This Hyvair D05 modular single pilot operated check valve, part number D05-SPC1-B-70, places a pilot operated check on the B port, which opens when the A line is pressurized. Cracking pressure is 70 psi.
The steel body mounts on the NFPA D05 / ISO 4401-05 pattern and is rated to 3000 psi with 12 gpm nominal flow. A uniform 2.17 in body thickness keeps stacks clean and reduces the number of bolt kits needed.
Recommended filtration is 25 micron or less, ISO 18/15. Fluid temperature range is 40 to 160 °F. Fluid viscosity range is 80 to 300 SUS.
What mounting pattern does it fit?
It mounts on the NFPA T3.5.1.MR1-D05 / ISO 4401-05 interface.
What pressure and flow is it rated for?
It is rated to 3000 psi, nominal flow 12 gpm / 45 L/min.
What fluid conditions keep it running well?
Rated operating conditions: filtration 25 micron or less, ISO 18/15; viscosity 80 to 300 SUS; fluid temperature 40 to 160 °F.
What is it made of?
The body is steel.
