$236.56

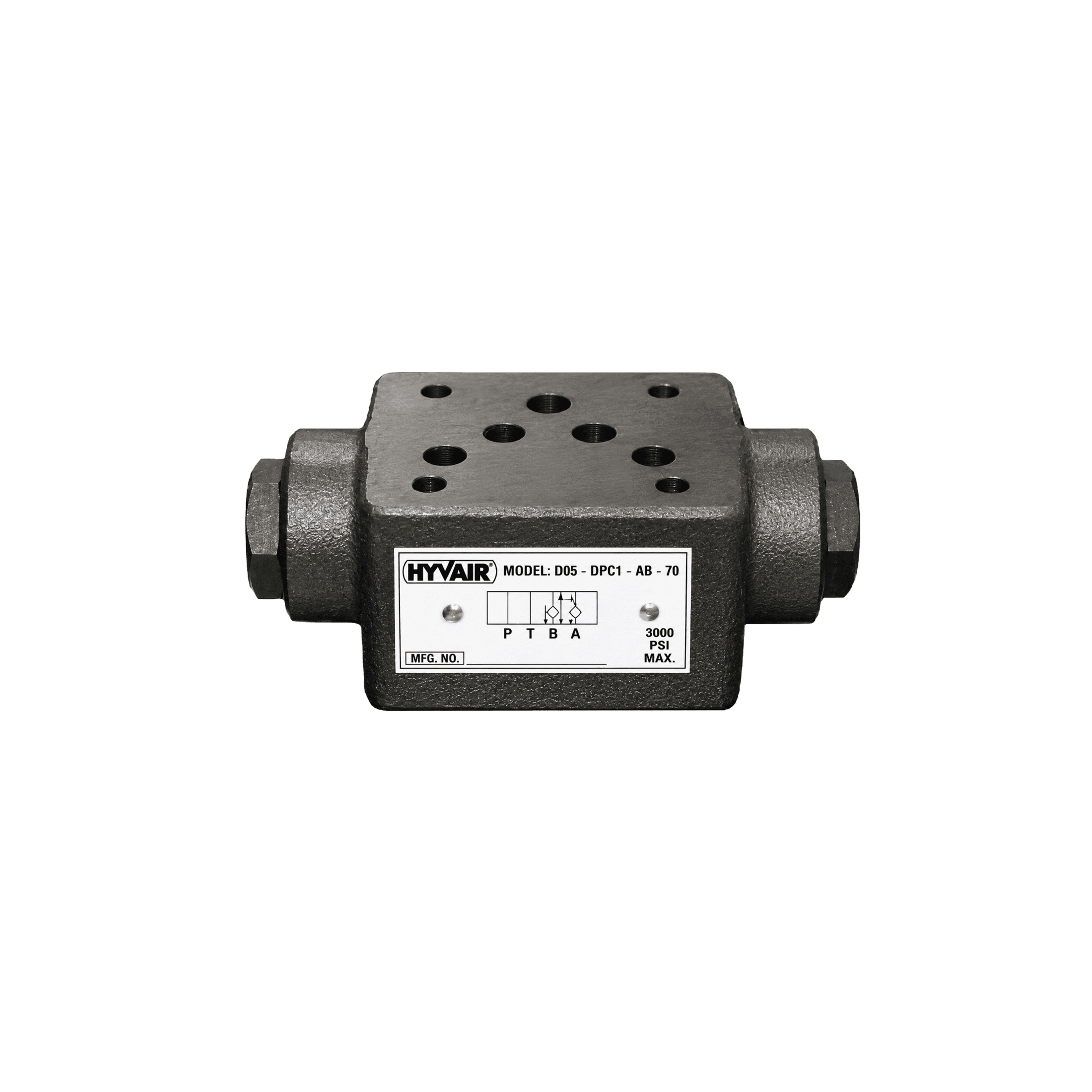

The Hyvair Modular Double Pilot Operated Check Valve D05-DPC1-AB-70 is for hydraulic system builders, OEMs and maintenance technicians replacing or specifying manifold-mounted valves.
This Hyvair D05 modular double pilot operated check valve, part number D05-DPC1-AB-70, puts pilot operated checks on both the A and B ports, holding the actuator in place until the opposite line is pressurized. Cracking pressure is 70 psi.
The steel body mounts on the NFPA D05 / ISO 4401-05 pattern and is rated to 3000 psi with 12 gpm nominal flow. A uniform 2.17 in body thickness keeps stacks clean and reduces the number of bolt kits needed.
Recommended filtration is 25 micron or less, ISO 18/15. Fluid temperature range is 40 to 160 °F. Fluid viscosity range is 80 to 300 SUS.
What mounting pattern does it fit?
It mounts on the NFPA T3.5.1.MR1-D05 / ISO 4401-05 interface.
What pressure and flow is it rated for?
It is rated to 3000 psi, nominal flow 12 gpm / 45 L/min.
What fluid conditions keep it running well?
Rated operating conditions: filtration 25 micron or less, ISO 18/15; viscosity 80 to 300 SUS; fluid temperature 40 to 160 °F.
What is it made of?
The body is steel.
Related categories: Valves · Modular Valves · Double Pilot Check Valves
Brand: Hyvair
